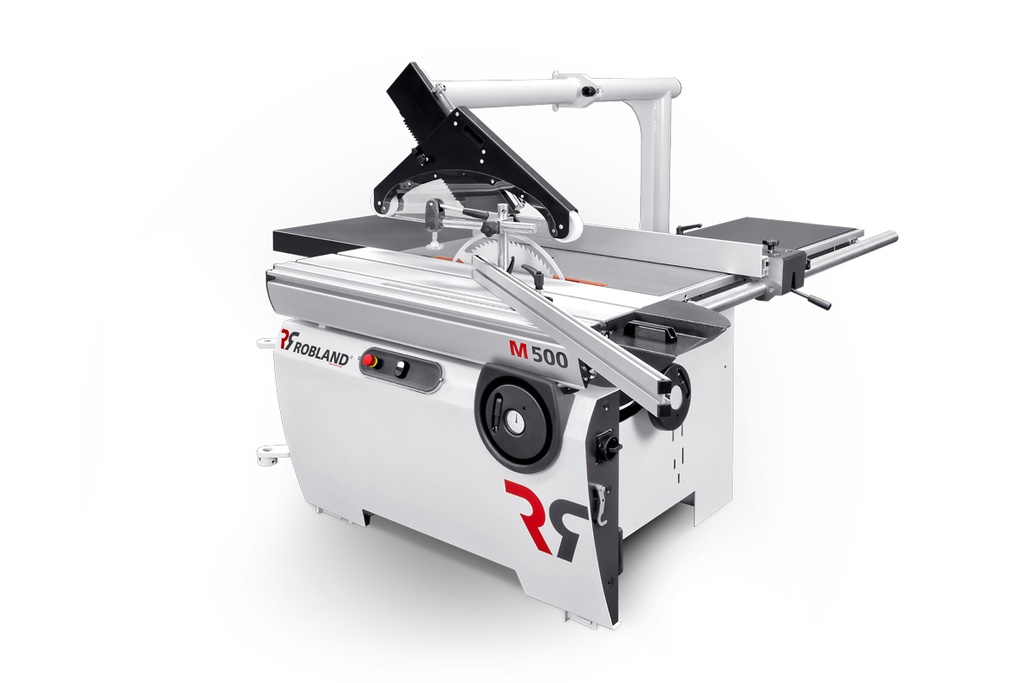

M500 M/EL

Signature Panel Saw Frame

Enhanced Stability and Precision : Our Signature Panel Saw Frame is engineered to provide exceptional stability, significantly improving precision and safety during your work. The robust design ensures a solid foundation, allowing for accurate cuts every time. Ergonomic Curved Design : The frame’s unique curved design allows the operator to stand closer to the workpiece, enhancing control and reducing strain. This ergonomic feature makes it easier to manage complex cuts with confidence. Effortless Mobility : Crafted for convenience, the frame is designed for easy relocation. It can be effortlessly moved using a pallet truck, ensuring smooth and convenient transportation when needed.

Cast iron saw table

Superior Strength with Honeycomb Structure : Our Cast Iron Tables are engineered for exceptional durability and performance. Featuring a robust honeycomb structure, these tables provide the best strength-to-weight ratio, ensuring reliable support without unnecessary bulk. Triple-Planed for Optimal Quality : Each table undergoes a meticulous three-step planing process to ensure the highest standards of Robland Quality. Crafted from premium Belgian cast iron, the planing process is conducted in-house to maintain strict quality control: Initial Planing: The table is planed to achieve perfect flatness, creating a stable and even surface. Friction Reduction: The second step involves further planing to reduce friction, ensuring smooth operation during use. Signature Microgrooves: The final step introduces our signature microgrooves. This delicate removal of material results in minimal energy dissipation, enhancing the precision and ease of movement for wooden workpieces. Enhanced Precision with Microgroove Technology Our microgroove technology is the hallmark of our cast iron tables. These finely crafted grooves allow for effortless gliding of wood, minimizing resistance and ensuring maximum precision during cutting operations. The result is a table surface that not only supports high accuracy but also significantly reduces the effort required in handling materials.

Classic rip fence 700mm

Effortless Adjustment for Optimal Support : Our cast iron rip fence is expertly crafted to provide unwavering support for your workpiece at a precise 90° angle. Designed for ease of use, it can be effortlessly adjusted to suit your specific needs. Versatile 90° Rotation : The fence profile is capable of rotating 90°, allowing you to work securely and comfortably close to the saw. This flexibility enhances your control and precision, making it an essential feature for achieving accurate results in your projects.

Classic Rip Fence with Fine Adjustment

The classic Rip Fence is designed for both flexibility and precision. To reposition the fence, simply loosen the lower handle and slide it to the desired location. For fine adjustments, tighten the upper handle and use the right handle to make precise, incremental changes. This system ensures accurate positioning, allowing you to achieve exact cuts with ease.

Overhead saw guard

To ensure maximum safety and dust extraction, our overhead saw guard automatically adjusts to the height of the workpiece. This guarantees the hood to remain in the optimal position for providing the highest level of protection and extraction. When the saw is idle, the arm of the saw hood can be effortlessly rotated away.

Mitre Fence with Wood Clamp

This Mitre Fence features an integrated wood clamp, ensuring secure and stable positioning of your workpieces for precise miter cuts

Support table

The Extra Support Table can be positioned anywhere along the aluminum profile of the sliding table, providing flexibility for your workflow. When used in conjunction with the outrigger table, it offers enhanced stability and support for handling large panels with ease.

Extra Support Table with Rip Fence

This versatile Extra Support Table includes a rip fence on a ruler, ideal for cutting long, narrow strips with precision. It can be positioned anywhere along the aluminum profile of the sliding table, providing flexibility in your setup. Combined with the outrigger table, it offers enhanced support and stability for handling large panels effortlessly.

Adjustable Scoring Blade

The "LEADER" scoring blade features an adjustable width, allowing it to perfectly match the main saw blade. This innovative design significantly reduces setup time when changing saw blades, streamlining your workflow and enhancing efficiency.

Double-Sided Mitre Fence

Designed for fast and stepless production of miter cuts, this system allows you to effortlessly mount it on the carriage of the saw. Perfect for working with narrow and short workpieces, it provides precise miter cuts at any angle from 0° to 90° with minimal setup time.

Scoring Unit for Clean Cuts

Enhance your M500 M/EL with an optional scoring unit, equipped with a dedicated 1 HP motor. This unit is essential for cutting melamine panels, ensuring a clean, chip-free finish by scoring the material before the main saw blade passes through. This feature is particularly valuable for achieving professional-quality cuts on laminated or veneered materials. The scoring unit is easily adjustable in both height and axial position using two convenient handles located on the side of the machine. This allows for quick and precise adjustments when changing the main saw blade. While the scoring blade is not included with the machine, it’s important to select a blade that is slightly wider than the main saw blade. This ensures optimal performance and clean cuts, especially when working with laminated or veneered materials.

Multiple Saw Speeds for Versatile Cutting

The M500 M/EL can be equipped with multiple saw speeds on the main saw blade, allowing you to adapt to various cutting requirements with ease. Accessing and changing the belts is simple and efficient—just open the door in the frame to quickly set the correct speed. This design ensures that you can effortlessly switch speeds to match the material you're working with, optimizing both precision and efficiency.

Remote start-stop

The sliding table can have an integrated remote start/stop system, allowing you to control the machine without the need to reach over, reducing strain and minimizing risk during operation. When equipped with the optional scoring unit, the remote control is further enhanced with additional buttons to operate the scoring unit directly. This setup ensures that all key functions are easily accessible, streamlining your workflow and improving overall efficiency.

Groove Cutter

Enhance your machine’s capabilities by adding a groove cutter on the saw flange. This feature allows you to cut grooves with precision, accommodating widths up to a maximum of 16mm. Ideal for creating slots and grooves, this option expands the versatility of your machine for various woodworking applications.

Support roller

Upgrade your M500 M/EL with the support roller, designed to provide even better support for your panels during cutting operations. Positioned before the saw blade, this roller ensures that panels are smoothly guided and securely supported, reducing the risk of errors and enhancing the overall quality of your cuts.

LED Safety Indicator for Scoring Unit

For added safety, the machine can be equipped with an LED indicator that illuminates when the scoring unit is running. This visual cue ensures that operators are always aware when the scoring unit is active, helping to prevent accidents and promote a safer working environment.

Digital Pack for Enhanced Precision

For the electric version of the machine, you can opt for a digital pack that provides a digital readout of the saw blade’s height and tilt. This upgrade allows for quicker transitions between settings and ensures even greater precision in your work, making adjustments faster and more accurate than ever.

Digital readout on rip fence

Upgrade your rip fence with a digital readout for precise measurements and a streamlined workflow. This feature ensures higher accuracy in your cuts and allows for quicker adjustments, boosting both precision and productivity in your projects.

Classic outrigger Table with the classic Crosscut Fence

Classic Outrigger Table and Crosscut Fence : The M500 M/EL can be equipped with the robust classic outrigger table and the durable classic crosscut fence. These heavy-duty components are designed to withstand rigorous use, making it a reliable workhorse in any professional workshop. Extended Crosscutting Capability : The classic crosscut fence can extend up to 3 meters, providing the flexibility and support needed to handle large panels and complex cuts with precision. Combined with the sturdy support of the classic outrigger table, this machine is equipped to tackle a wide range of tasks with ease and accuracy.

Classic outrigger table with index system

Double Upgrade for Increased Efficiency : The classic outrigger table is available with a powerful double upgrade, designed to enhance both speed and support during your work. Index System for Quick Adjustments : The first upgrade is the innovative index system, which allows you to effortlessly move the crosscut fence to predefined angles. This feature significantly reduces setup time, enabling you to switch between different cutting angles quickly and with precision, streamlining your workflow. Extendable Frame for Added Support : The second enhancement is the extendable frame, providing additional support when working with the extended crosscut fence. This frame also includes an extra movable support that can be adjusted to further extend the outrigger table's surface, offering stability and ease when handling larger or more complex workpieces.

Apex Outrigger Table with optional digital readout

Ultimate Precision and Versatility : The Apex outrigger table represents the peak of Robland’s engineering excellence, offering unparalleled performance and flexibility. Paired with the Apex crosscut fence, this setup provides everything you need for precise and efficient woodworking. The Apex outrigger table is a true powerhouse, measuring 1505 x 760 mm, and is equipped with extensions for both length and width. This expansive surface area ensures that you can comfortably handle large workpieces with the utmost stability and precision. The Apex crosscut fence, designed to complement the luxury outrigger table, features a slanting telescopic design that extends from 2295 to 3355 mm. The integrated index system, complete with length correction, allows for fast and precise adjustments, making it easy to achieve accurate sawing of angles and mitre cuts. This system ensures that every cut is consistent, reducing setup time and enhancing overall
